CRUD MVC 패턴 총정리 : 게시판만들기

Frameworks/Spring 2019. 8. 26. 14:48

728x90

오라클에서 테이블 만들기

select * from tab;  //테이블 뭐가 있나 조회

create table test(
bno number primary key,
writer varchar2(20),
title varchar2(100),
content varchar2(1000),
reg_data date default sysdate);

create sequence test_seq;

insert into test (
bno, writer, title, content)
values (test_seq.nextval, 'aaa', '제목입니다', '내용입니다');

select * from test;

commit;

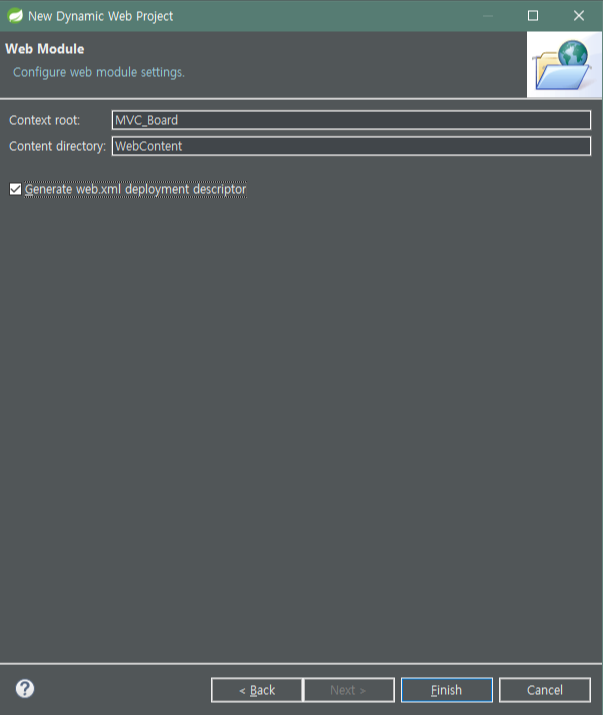

New > Dynamic Web Project > MVC_Board 프로젝트를 만든다.
* 만들 때 Generate web.xml deployment desciptor에 체크한 후 Finish한다.

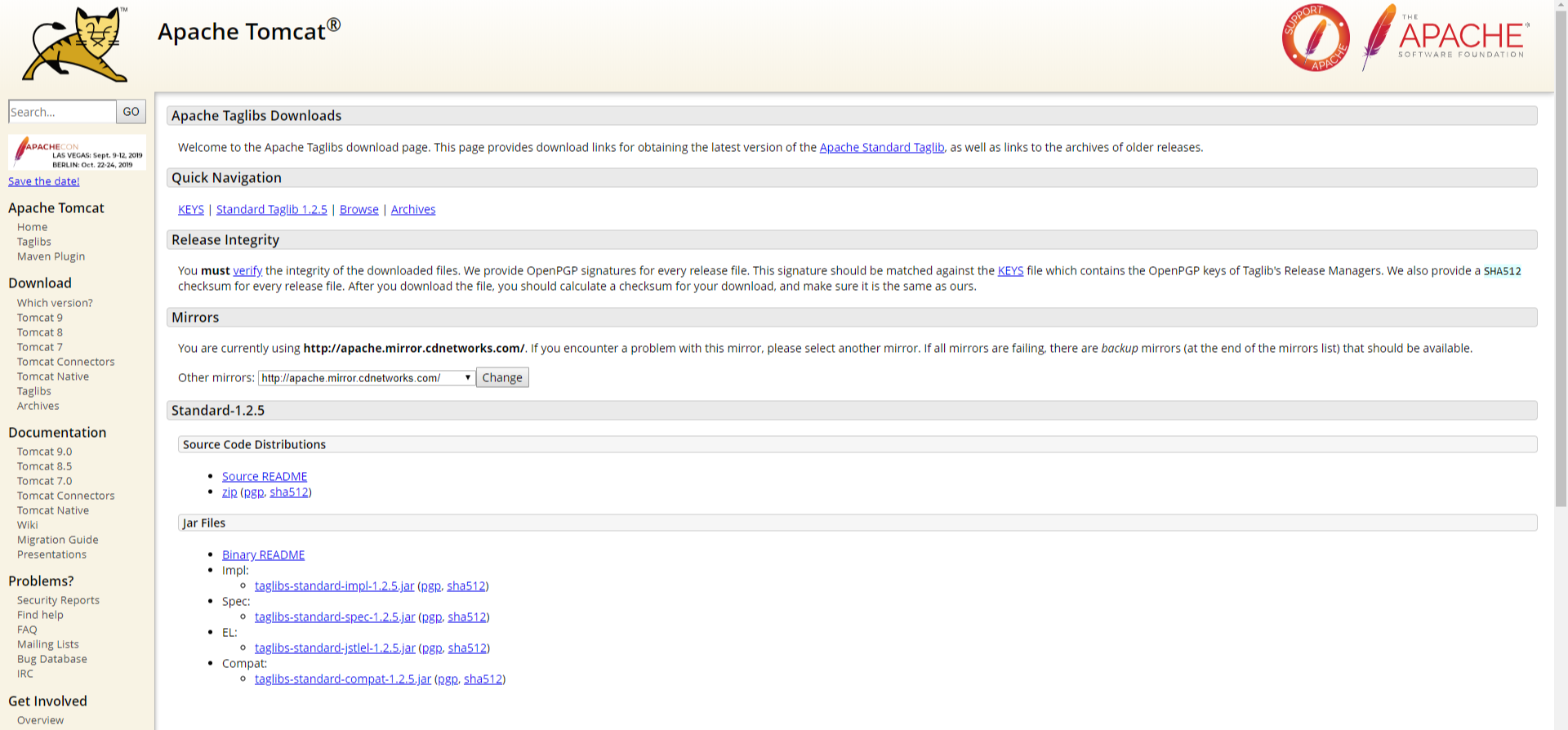

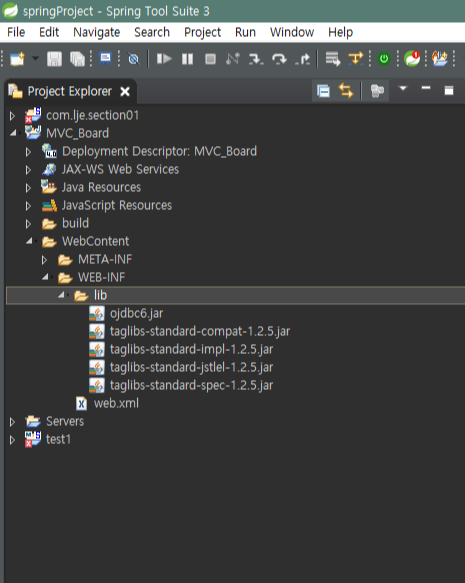

톰캣 홈페이지의 Taglibs에 들어가 네가지를 다운받은 후, lib폴더에 붙여넣는다.

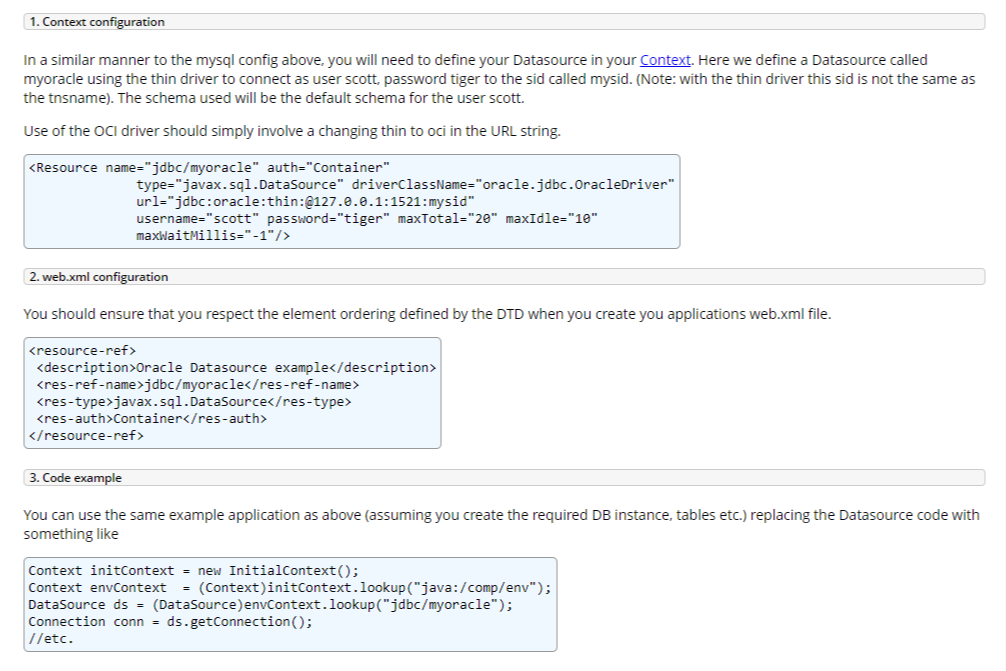

아파치 톰캣 웹사이트에 들어가 document > Oracle 부분의 소스를 참고할 것이다.

Apache Tomcat 9 (9.0.24) - JNDI Datasource How-To

JNDI Datasource configuration is covered extensively in the JNDI-Resources-HOWTO. However, feedback from tomcat-user has shown that specifics for individual configurations can be rather tricky. Here then are some example configurations that have been poste

tomcat.apache.org

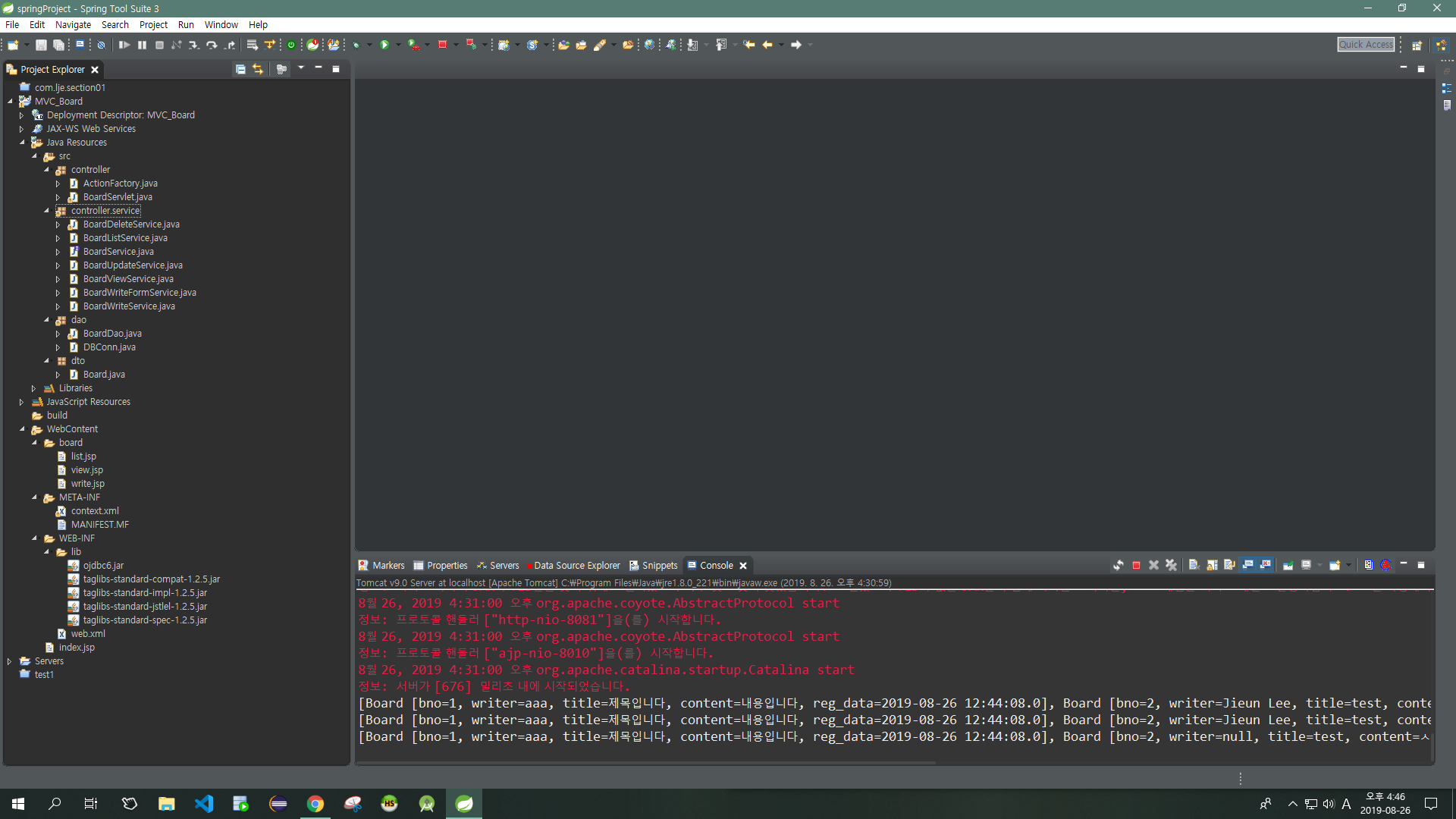

MVC 패턴 코드 전체구성

META-INF

context.xml : Resource name 부분을 복사 붙여넣기 후 수정

<?xml version="1.0" encoding="UTF-8"?>
<context>
	<Resource name="jdbc/boardddb" auth="Container"
              type="javax.sql.DataSource"
              driverClassName="oracle.jdbc.driver.OracleDriver"
              url="jdbc:oracle:thin:@127.0.0.1:1521:xe"
              username="mvc" password="1234"
              maxTotal="20" maxIdle="10"
              maxWaitMillis="-1"/>
</context>
<!--maxTotl : 커넥트풀 최대유지 . -1 : 시간안정함 -->

web.xml 셋팅 : 부분을 복사 붙여넣기 후 수정 (web-content)

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns="http://xmlns.jcp.org/xml/ns/javaee"
	xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
	id="WebApp_ID" version="4.0">
	<display-name>MVC_Board</display-name>
	<welcome-file-list>
		<welcome-file>index.html</welcome-file>
		<welcome-file>index.htm</welcome-file>
		<welcome-file>index.jsp</welcome-file>
		<welcome-file>default.html</welcome-file>
		<welcome-file>default.htm</welcome-file>
		<welcome-file>default.jsp</welcome-file>
	</welcome-file-list>

	<resource-ref>
		<description>Oracle Datasource example</description>
		<res-ref-name>jdbc/boardddb</res-ref-name>
		<res-type>javax.sql.DataSource</res-type>
		<res-auth>Container</res-auth>
	</resource-ref>
</web-app>

dao

DBConn.java

package dao;

import java.sql.Connection;
import java.sql.PreparedStatement;
import java.sql.ResultSet;

import javax.naming.Context;
import javax.naming.InitialContext;
import javax.sql.DataSource;

public class DBConn {
	public static Connection getConnection() {
		Connection conn=null;
		try {
			Context initContext = new InitialContext();
			Context envContext  = (Context)initContext.lookup("java:/comp/env");
			DataSource ds = (DataSource)envContext.lookup("jdbc/boardddb");
			conn = ds.getConnection();
		} catch (Exception ex) {
			ex.printStackTrace();
		}

		return conn;
	}
	public static void closeConn(Connection con) {
		try {
			if(con!=null)
				con.close();
		} catch (Exception ex) {
			ex.printStackTrace();
		}
	}
	public static void closePs(PreparedStatement ps) {
		try {
			if(ps!=null)
				ps.close();
		} catch (Exception ex) {
			ex.printStackTrace();
		}
	}
	public static void closeRs(ResultSet rs) {
		try {
			if(rs!=null)
				rs.close();
		} catch (Exception ex) {
			ex.printStackTrace();
		}
	}
}

BoardDao.java

package dao;

import java.sql.Connection;
import java.sql.PreparedStatement;
import java.sql.ResultSet;
import java.util.ArrayList;

import dto.Board;

public class BoardDao {
	//싱글톤
	private BoardDao () {}
	private static BoardDao dao = new BoardDao();
	public static BoardDao getInstance() {
		return dao;
	}
	public ArrayList<Board> selectAll(){
		ArrayList<Board> list = new ArrayList<Board>();
		Connection conn = null;
		PreparedStatement ps = null;
		ResultSet rs= null;
		String sql = "select * from test";
		try {
			conn = DBConn.getConnection();
			ps = conn.prepareStatement(sql);
			rs = ps.executeQuery();
			while(rs.next()) {
				Board board = new Board();
				board.setBno(rs.getInt("bno"));
				board.setWriter(rs.getString("writer"));
				board.setTitle(rs.getString("title"));
				board.setContent(rs.getString("content"));
				board.setReg_data(rs.getTimestamp("reg_data"));
				list.add(board);
			}
		} catch (Exception e) {
			e.printStackTrace();
		} finally {
			DBConn.closeRs(rs);
			DBConn.closePs(ps);
			DBConn.closeConn(conn);
		}

		System.out.println(list.toString());
		return list;

	}
	public Board selectOne(int bno){
		Board board = null;
		Connection conn = null;
		PreparedStatement ps = null;
		ResultSet rs= null;
		String sql = "select * from test where bno=?";
		try {
			conn = DBConn.getConnection();
			ps = conn.prepareStatement(sql);
			ps.setInt(1, bno);
			rs = ps.executeQuery();
			while(rs.next()) {
				board = new Board();
				board.setBno(rs.getInt("bno"));
				board.setWriter(rs.getString("writer"));
				board.setTitle(rs.getString("title"));
				board.setContent(rs.getString("content"));
				board.setReg_data(rs.getTimestamp("reg_data"));

			}
		} catch (Exception e) {
			e.printStackTrace();
		} finally {
			DBConn.closeRs(rs);
			DBConn.closePs(ps);
			DBConn.closeConn(conn);
		}
		return board;

	}
	public void insert(Board board) {
		Connection conn = null;
		PreparedStatement ps = null;
		String sql = "insert into test(bno, writer, title, content)"
				+ "values(test_seq.nextval,?,?,?)";

		try {
			conn = DBConn.getConnection();
			ps = conn.prepareStatement(sql);
			ps.setString(1, board.getWriter());
			ps.setString(2, board.getTitle());
			ps.setString(3, board.getContent());
			int n = ps.executeUpdate();
		} catch (Exception e) {
				e.printStackTrace();
		} finally {
			DBConn.closePs(ps);
			DBConn.closeConn(conn);
		}
	}
	public void update(Board board) {
		Connection conn = null;
		PreparedStatement ps = null;
		String sql = "update test set writer=?, title=?, content=? where bno=?";

		try {
			conn = DBConn.getConnection();
			ps = conn.prepareStatement(sql);
			ps.setString(1, board.getWriter());
			ps.setString(2, board.getTitle());
			ps.setString(3, board.getContent());
			ps.setInt(4, board.getBno());
			int n = ps.executeUpdate();
		} catch (Exception e) {
				e.printStackTrace();
		} finally {
			DBConn.closePs(ps);
			DBConn.closeConn(conn);
		}
	}
	public void delete(int bno) {
		Connection conn = null;
		PreparedStatement ps = null;
		String sql = "delete from test where bno=?";

		try {
			conn = DBConn.getConnection();
			ps = conn.prepareStatement(sql);
			ps.setInt(1, bno);
			int n = ps.executeUpdate();
		} catch (Exception e) {
				e.printStackTrace();
		} finally {
			DBConn.closePs(ps);
			DBConn.closeConn(conn);
		}
	}

}

dto

Board.java

package dto;

import java.sql.Timestamp;

public class Board {
	private int bno;
	private String writer;
	private String title;
	private String content;
	private Timestamp reg_data;
	public int getBno() {
		return bno;
	}
	public void setBno(int bno) {
		this.bno = bno;
	}
	public String getWriter() {
		return writer;
	}
	public void setWriter(String writer) {
		this.writer = writer;
	}
	public String getTitle() {
		return title;
	}
	public void setTitle(String title) {
		this.title = title;
	}
	public String getContent() {
		return content;
	}
	public void setContent(String content) {
		this.content = content;
	}
	public Timestamp getReg_data() {
		return reg_data;
	}
	public void setReg_data(Timestamp reg_data) {
		this.reg_data = reg_data;
	}
	@Override
	public String toString() {
		return "Board [bno=" + bno + ", writer=" + writer + ", title=" + title + ", content=" + content + ", reg_data="
				+ reg_data + "]";
	}

}

controller

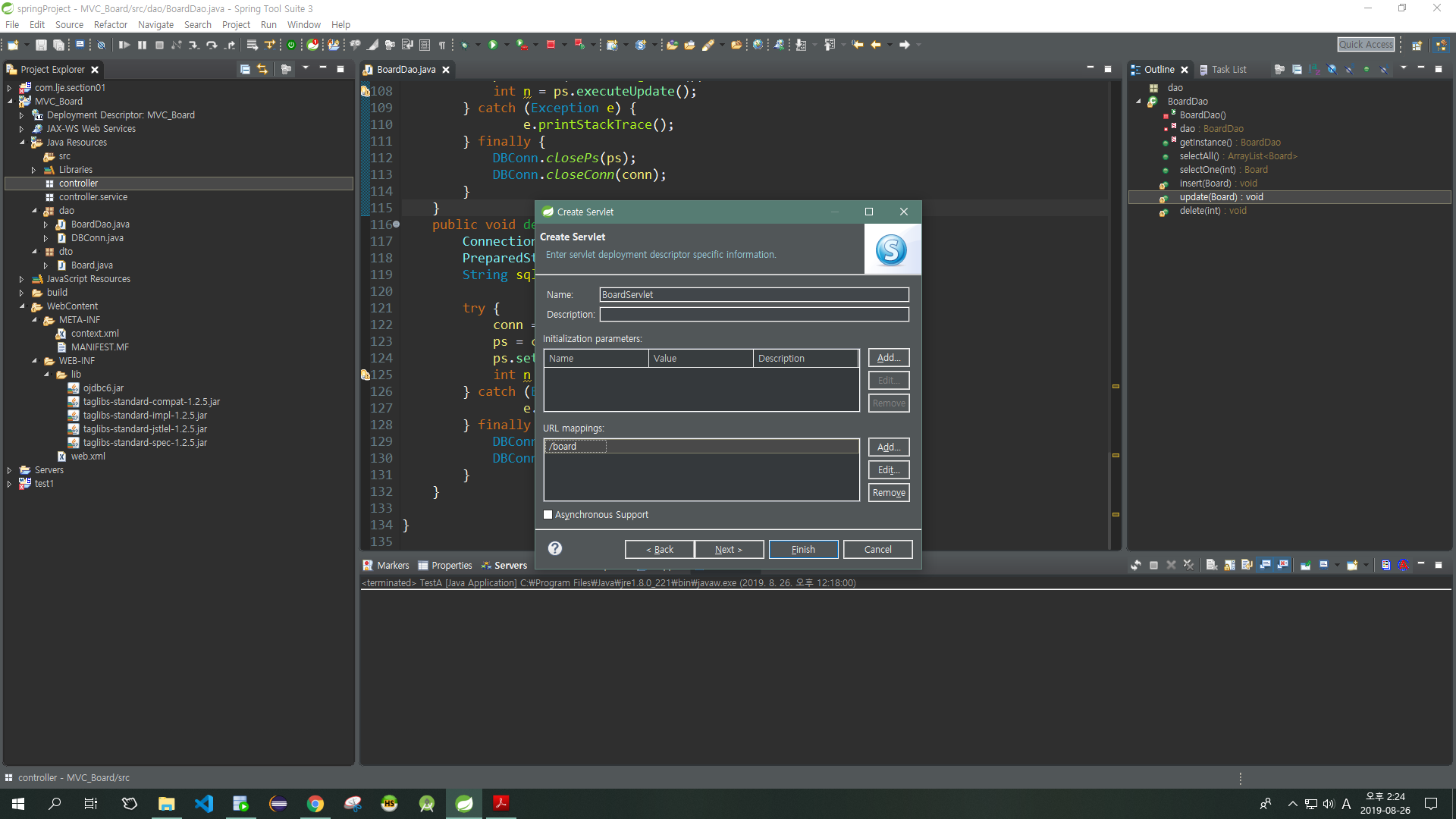

BoardServlet.java (전단서블릿)

package controller;

import java.io.IOException;
import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import controller.service.BoardService;
import oracle.net.aso.s;

/**
 * Servlet implementation class BoardServlet
 */
@WebServlet("*.do")
public class BoardServlet extends HttpServlet {
	private static final long serialVersionUID = 1L;

    /**
     * @see HttpServlet#HttpServlet()
     */
    public BoardServlet() {
        super();
    }

	/**
	 * @see HttpServlet#doGet(HttpServletRequest request, HttpServletResponse response)
	 */
	protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
		doProcess(request, response);
	}

	/**
	 * @see HttpServlet#doPost(HttpServletRequest request, HttpServletResponse response)
	 */
	protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
		/* get은 자동인데 포스트는 한글처리해줘야된다 */
		request.setCharacterEncoding("utf-8");
		doProcess(request, response);
	}
	protected void doProcess(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
		String requestURI = request.getRequestURI();
		String contextPath = request.getContextPath();
		String command = requestURI.substring(contextPath.length());

		ActionFactory af = ActionFactory.getInstance();
		BoardService service =af.getService(command) ;
		if(service!=null)
			service.execute(request, response);


	}

}

ActionFactory.java

package controller;

import controller.service.BoardDeleteService;
import controller.service.BoardListService;
import controller.service.BoardService;
import controller.service.BoardUpdateService;
import controller.service.BoardViewService;
import controller.service.BoardWriteFormService;
import controller.service.BoardWriteService;

public class ActionFactory {
	//싱글톤
	private ActionFactory () {}
	private static ActionFactory af = new ActionFactory();
	public static ActionFactory getInstance() {
		return af;
	}
	public BoardService getService(String command) {
		BoardService service = null;
		if(command.equals("/list.do"))
			service = new BoardListService();
		else if(command.equals("/writeForm.do")) {
			service = new BoardWriteFormService();
		}else if(command.equals("/write.do")) {
			service = new BoardWriteService();
		}else if(command.equals("/view.do")) {
			service = new BoardViewService();
		}else if(command.equals("/update.do")) {
			service = new BoardUpdateService();
		}else if(command.equals("/delete.do")) {
			service = new BoardDeleteService();
		}
		return service;
	}
}

controller.service

BoardService.java

package controller.service;

import java.io.IOException;

import javax.servlet.ServletException;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

public interface BoardService {
	public void execute(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException;
}

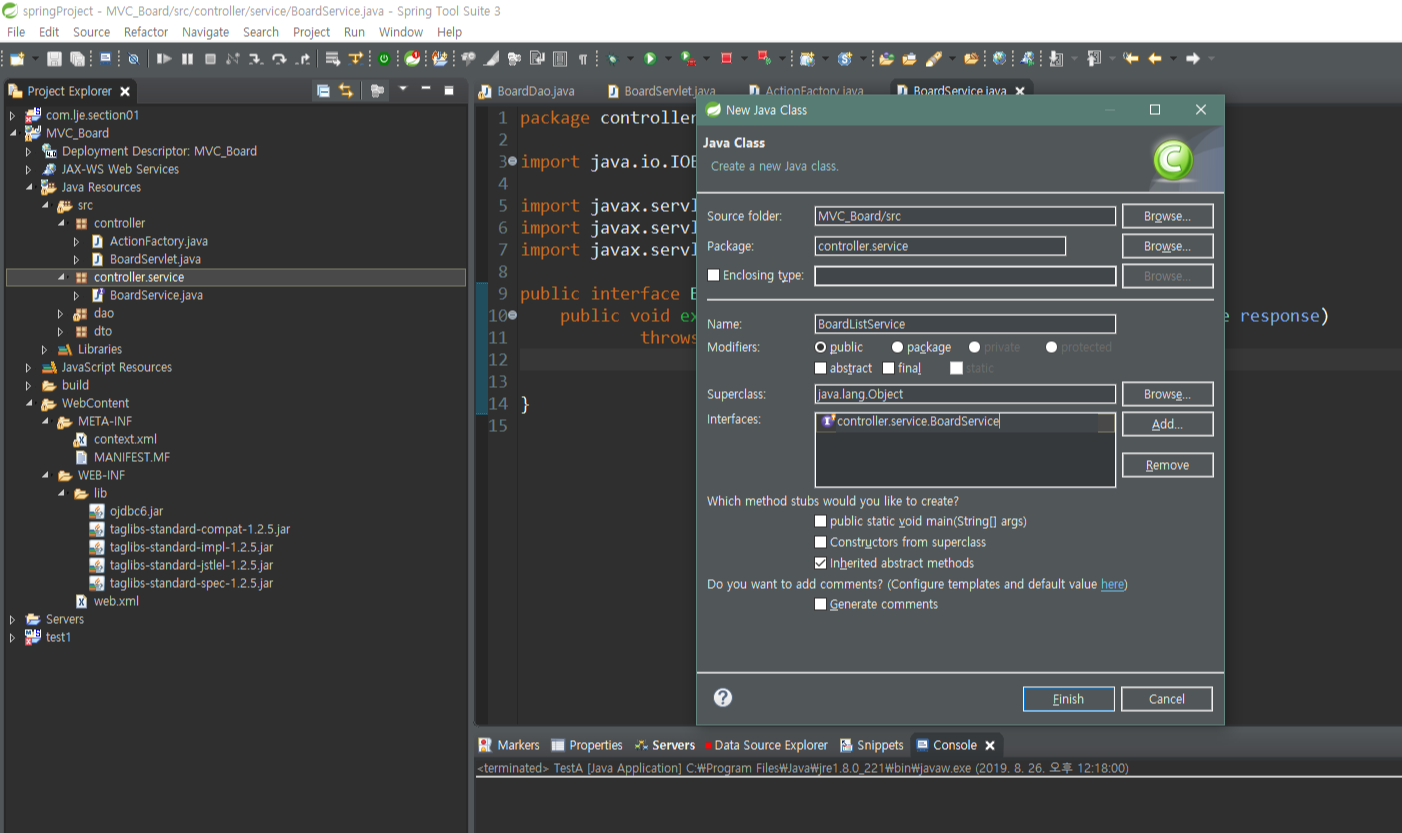

BoardListService.java

package controller.service;

import java.io.IOException;
import java.util.ArrayList;

import javax.servlet.ServletException;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import dao.BoardDao;
import dto.Board;

public class BoardListService implements BoardService {

	@Override
	public void execute(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
		 BoardDao dao = BoardDao.getInstance();
		 ArrayList<Board> list = dao.selectAll(); //게시판리스트 받아옴
		 request.setAttribute("boardlist", list); //리케스트의 속성으로 넣음 (실제부르는이름, 보이는이름)
		 request.getRequestDispatcher("/board/list.jsp").forward(request, response);
		 //포워드 정보 페이지로 request, response를 갖고 list.jsp로 감. 가면 boardlist를 바로 읽을 수 있음

	}

}

BoardWriteFormService.java

package controller.service;

import java.io.IOException;

import javax.servlet.ServletException;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

public class BoardWriteFormService implements BoardService{

	@Override
	public void execute(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {
		request.getRequestDispatcher("board/write.jsp")
		.forward(request, response);


	}

}

BoardWriteService.java

package controller.service;

import java.io.IOException;

import javax.servlet.ServletException;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import dao.BoardDao;
import dto.Board;

public class BoardWriteService implements BoardService {

	@Override
	public void execute(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {
		Board board = new Board();
		board.setWriter(request.getParameter("writer"));
		board.setTitle(request.getParameter("title"));
		board.setContent(request.getParameter("content"));
		BoardDao dao = BoardDao.getInstance();
		dao.insert(board);
		response.sendRedirect("list.do");
	}

}

BoardViewService.java

package controller.service;

import java.io.IOException;

import javax.servlet.ServletException;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import dao.BoardDao;
import dto.Board;

public class BoardViewService implements BoardService {

	@Override
	public void execute(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
		int bno = Integer.parseInt(request.getParameter("bno"));
		BoardDao dao = BoardDao.getInstance();
		Board board = dao.selectOne(bno);
		request.setAttribute("board", board);
		request.getRequestDispatcher("board/view.jsp")
			.forward(request, response);
	}

}

BoardUpdateService.java

package controller.service;

import java.io.IOException;

import javax.servlet.ServletException;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import dao.BoardDao;
import dto.Board;

public class BoardUpdateService implements BoardService {

	@Override
	public void execute(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {
		Board board = new Board();
		board.setBno(Integer.parseInt(request.getParameter("bno")));
		board.setWriter(request.getParameter("update"));
		board.setTitle(request.getParameter("title"));
		board.setContent(request.getParameter("content"));

		BoardDao dao = BoardDao.getInstance();
		dao.update(board);
		response.sendRedirect("list.do");
	}

}

BoardDeleteService.java

package controller.service;

import java.io.IOException;

import javax.servlet.ServletException;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import dao.BoardDao;
import dto.Board;

public class BoardDeleteService implements BoardService {

	@Override
	public void execute(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
		int bno = Integer.parseInt(request.getParameter("bno"));
		BoardDao dao = BoardDao.getInstance();
		dao.delete(bno);
		response.sendRedirect("list.do");
	}

}

WebContent

index.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
</head>
<body>
<%response.sendRedirect("list.do"); %>
</body>
</html>

board

list.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<%@ taglib prefix="fmt" uri="http://java.sun.com/jsp/jstl/fmt" %>

<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
</head>
<body>
	<table>
		<tr>
			<td colspan="4" align="right">
			<a href="writeForm.do">글쓰기</a></td>
		</tr>
		<tr>
			<th>번호</th>
			<th>제목</th>
			<th>작성자</th>
			<th>작성일</th>
		</tr>
		<c:forEach items="${boardlist}" var="board">
		<tr>
			<td>${board.bno }</td>
			<td><a href="view.do?bno=${board.bno }">${board.title}</a></td>
			<td>${board.writer }</td>
			<td><fmt:formatDate value="${board.reg_data }"/></td>
		</tr>
		</c:forEach>
	</table>
</body>
</html>

view.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
</head>
<body>
<form action="update.do" method="post">
	<table>
		<tr>
			<th>번호</th>
			<td><input type="text" name="bno" readonly value=${board.bno }></td>
		</tr>
		<tr>
			<th>작성자</th>
			<td><input type="text" name="writer" value=${board.writer }></td>
		</tr>
		<tr>
			<th>제목</th>
			<td><input type="text" name="title" value=${board.title }></td>
		</tr>
		<tr>
			<th>내용</th>
			<td><textarea rows="7" cols="50" name="content">${board.content}</textarea></td>
		</tr>
		<tr>
			<td colspan="2" align="center">
				<input type="submit" value="수정">
				<input type="reset" value="취소">
				<input type="button" value="삭제" onclick="location.href='delete.do?bno=${board.bno}'">
				<input type="button" value="목록" onclick="location.href='list.do'">
			</td>
		</tr>
	</table>
	</form>
</body>
</html>

write.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
</head>
<body>
<form action="write.do" method="post">
	<table>
		<tr>
			<th>작성자</th>
			<td><input type="text" name="writer"></td>
		</tr>
		<tr>
			<th>제목</th>
			<td><input type="text" name="title"></td>
		</tr>
		<tr>
			<th>내용</th>
			<td><textarea rows="7" cols="50" name="content"></textarea></td>
		</tr>
		<tr>
			<td colspan="2" align="center">
				<input type="submit" value="저장">
				<input type="reset" value="취소">
				<input type="button" value="목록" onclick="location.href='list.do'">
			</td>
		</tr>
	</table>
	</form>
</body>
</html>

처리 순서 요약

index(뷰)에서 요청 -> boardservlet 에서 do/post 중 하나 -> process에서 request정보, 전체 uri 중 contextpath(프로젝트 우측 버튼, 프로퍼티에 가면 web project setting의 context root)를 가져온다. (index 앞의 response.sendRedirect("list.do"); list.do 앞에 이것저것 붙는다. ) uri는 실제 리소스 주소 (MVC_Board/list.do)다. url은 http부터.

contextpath.length() 는 길이. 전체 주소에서 path의 길이 (/ 포함)
어떤 값이 나오는 게 궁금하면 System.out.println(requestURI....contextpath...command)등으로 출력해본다.

BoardServlet의 BoardService에서 서비스를 얻기위해

ActionFactory 서비스 생성 후 레퍼런스 리턴

다시 BoardServlet 와서 request, response 참조값을 가지고 함수 호출..

db의 값을 가지고 list.jsp 페이지로 간다.

list.jsp에...

728x90

저작자표시 비영리 변경금지

'Frameworks > Spring' 카테고리의 다른 글

Spring mybatis를 이용하여 게시판 만들기 (6)	2019.08.28
Spring MVC 패턴 스프링 게시판 만들기 (16)	2019.08.27
Spring MVC 개요, 구조, Resourse 폴더, 컨트롤러 구현 (전통적인 3버전 방법) (2)	2019.08.27
스프링 프레임워크 Spring Framework (2) Spring 개발 환경 설정 (0)	2019.08.23
스프링 프레임워크 Spring Framework (1) 프레임워크 정의, 장점, 스트링프레임워크, 컨테이너 개념 (398)	2019.08.23

coding-restaurant

코딩 맛집에 방문해주셔서 감사합니다.
