파일업로드는 insert와 delete, 추가만 있다.

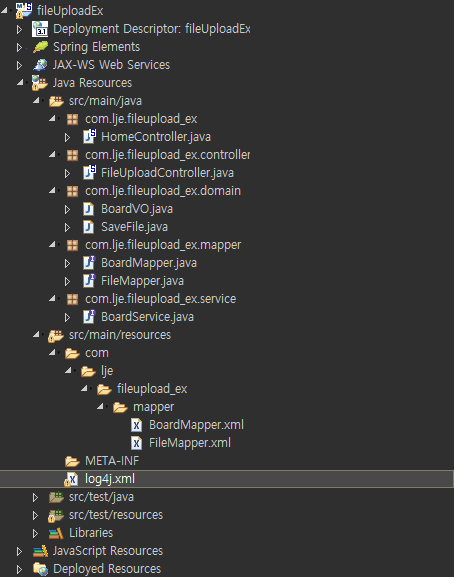

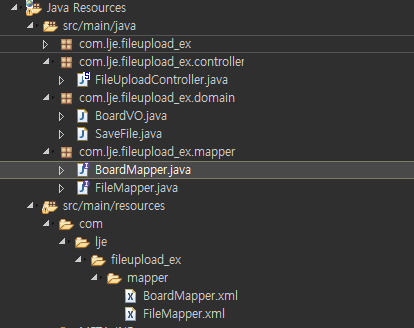

fileUploadEx 라는 이름의 스프링 레거시 프로젝트를 만든다.

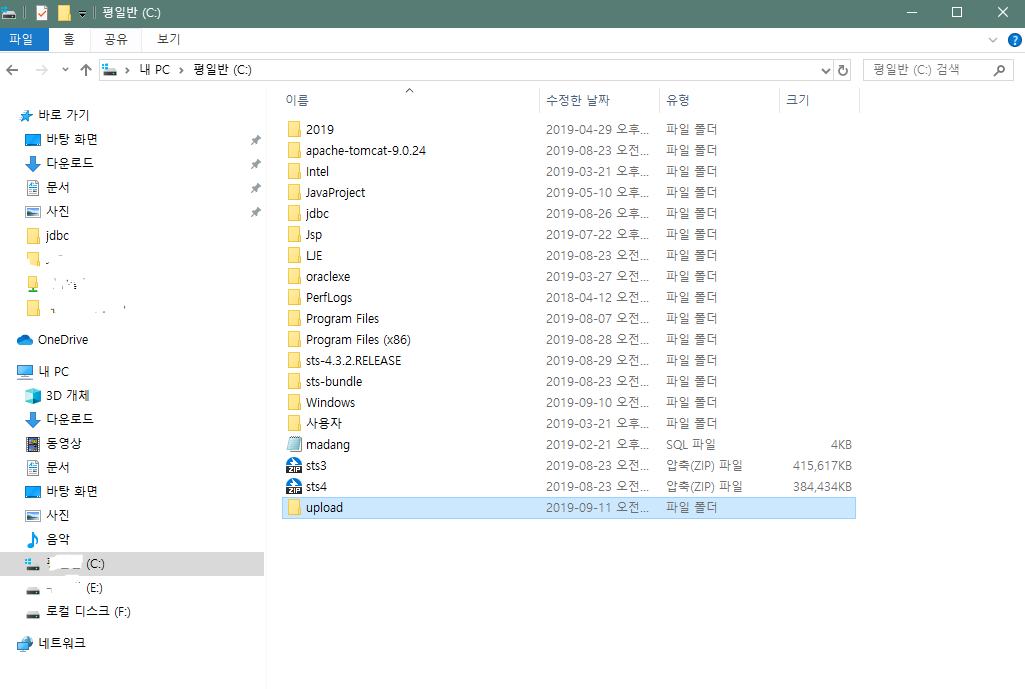

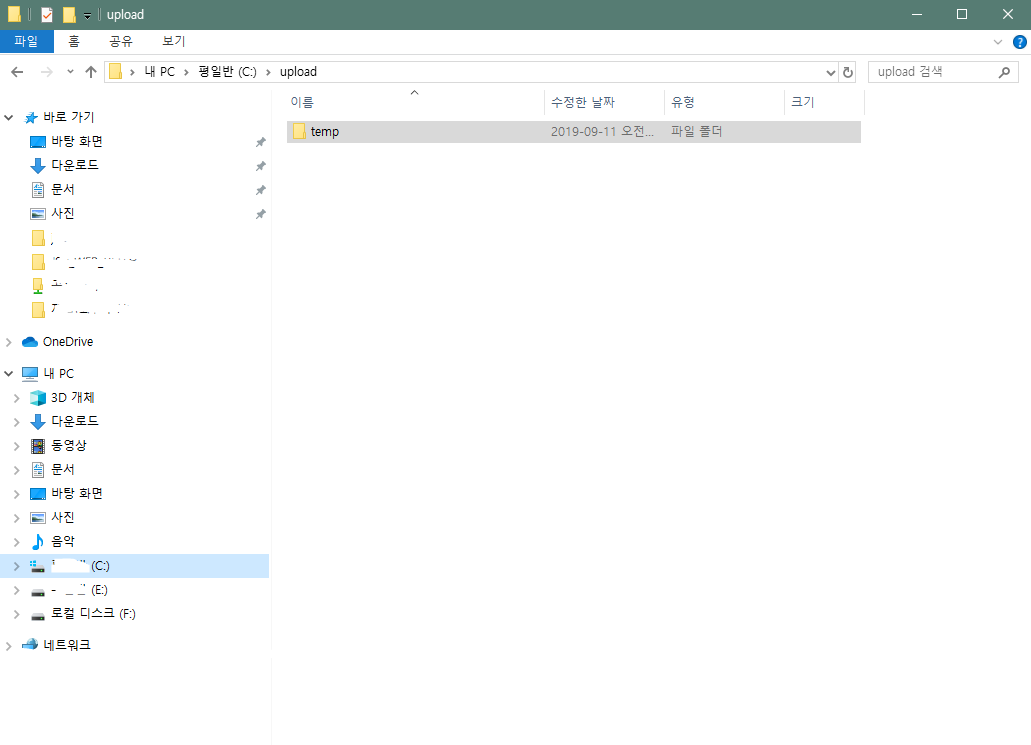

C 루트에 upload/temp 폴더를 만든다.
pom.xml
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/maven-v4_0_0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>com.lje</groupId>
<artifactId>aopexam</artifactId>
<name>aopExam</name>
<packaging>war</packaging>
<version>1.0.0-BUILD-SNAPSHOT</version>
<properties>
<java-version>1.8</java-version>
<org.springframework-version>5.1.9.RELEASE</org.springframework-version>
<org.aspectj-version>1.9.4</org.aspectj-version>
<org.slf4j-version>1.7.25</org.slf4j-version>
</properties>
<dependencies>
<!-- Spring -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-context</artifactId>
<version>${org.springframework-version}</version>
<exclusions>
<!-- Exclude Commons Logging in favor of SLF4j -->
<exclusion>
<groupId>commons-logging</groupId>
<artifactId>commons-logging</artifactId>
</exclusion>
</exclusions>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-webmvc</artifactId>
<version>${org.springframework-version}</version>
</dependency>
<!-- AspectJ -->
<dependency>
<groupId>org.aspectj</groupId>
<artifactId>aspectjrt</artifactId>
<version>${org.aspectj-version}</version>
</dependency>
<!-- Logging -->
<dependency>
<groupId>org.slf4j</groupId>
<artifactId>slf4j-api</artifactId>
<version>${org.slf4j-version}</version>
</dependency>
<dependency>
<groupId>org.slf4j</groupId>
<artifactId>jcl-over-slf4j</artifactId>
<version>${org.slf4j-version}</version>
<scope>runtime</scope>
</dependency>
<dependency>
<groupId>org.slf4j</groupId>
<artifactId>slf4j-log4j12</artifactId>
<version>${org.slf4j-version}</version>
<scope>runtime</scope>
</dependency>
<dependency>
<groupId>log4j</groupId>
<artifactId>log4j</artifactId>
<version>1.2.17</version>
<exclusions>
<exclusion>
<groupId>javax.mail</groupId>
<artifactId>mail</artifactId>
</exclusion>
<exclusion>
<groupId>javax.jms</groupId>
<artifactId>jms</artifactId>
</exclusion>
<exclusion>
<groupId>com.sun.jdmk</groupId>
<artifactId>jmxtools</artifactId>
</exclusion>
<exclusion>
<groupId>com.sun.jmx</groupId>
<artifactId>jmxri</artifactId>
</exclusion>
</exclusions>
<scope>runtime</scope>
</dependency>
<!-- @Inject -->
<dependency>
<groupId>javax.inject</groupId>
<artifactId>javax.inject</artifactId>
<version>1</version>
</dependency>
<!-- Servlet -->
<!-- <dependency> <groupId>javax.servlet</groupId> <artifactId>servlet-api</artifactId>
<version>2.5</version> <scope>provided</scope> </dependency> -->
<!-- https://mvnrepository.com/artifact/javax.servlet/javax.servlet-api -->
<dependency>
<groupId>javax.servlet</groupId>
<artifactId>javax.servlet-api</artifactId>
<version>3.1.0</version>
<scope>provided</scope>
</dependency>
<dependency>
<groupId>javax.servlet.jsp</groupId>
<artifactId>jsp-api</artifactId>
<version>2.1</version>
<scope>provided</scope>
</dependency>
<dependency>
<groupId>javax.servlet</groupId>
<artifactId>jstl</artifactId>
<version>1.2</version>
</dependency>
<!-- Test -->
<dependency>
<groupId>junit</groupId>
<artifactId>junit</artifactId>
<version>4.12</version>
<scope>test</scope>
</dependency>
<!-- https://mvnrepository.com/artifact/org.springframework/spring-test -->
<!-- 스프링프레임워크 랑 똑같은 버전으로 -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-test</artifactId>
<version>5.1.9.RELEASE</version>
<scope>test</scope>
</dependency>
<!-- https://mvnrepository.com/artifact/org.projectlombok/lombok -->
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
<version>1.18.8</version>
<scope>provided</scope>
</dependency>
<!-- https://mvnrepository.com/artifact/org.aspectj/aspectjrt -->
<dependency>
<groupId>org.aspectj</groupId>
<artifactId>aspectjrt</artifactId>
<version>1.9.4</version>
</dependency>
<!-- https://mvnrepository.com/artifact/org.aspectj/aspectjweaver -->
<dependency>
<groupId>org.aspectj</groupId>
<artifactId>aspectjweaver</artifactId>
<version>1.9.4</version>
</dependency>
<!-- 추가한 것 -->
<!-- https://mvnrepository.com/artifact/com.googlecode.log4jdbc/log4jdbc -->
<dependency>
<groupId>com.googlecode.log4jdbc</groupId>
<artifactId>log4jdbc</artifactId>
<version>1.2</version>
</dependency>
<!-- https://mvnrepository.com/artifact/org.mybatis/mybatis -->
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis</artifactId>
<version>3.5.2</version>
</dependency>
<!-- https://mvnrepository.com/artifact/org.mybatis/mybatis-spring -->
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis-spring</artifactId>
<version>2.0.2</version>
</dependency>
<!-- https://mvnrepository.com/artifact/org.springframework/spring-jdbc -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-jdbc</artifactId>
<version>5.1.9.RELEASE</version>
</dependency>
<!-- https://mvnrepository.com/artifact/org.springframework/spring-tx -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-tx</artifactId>
<version>5.1.9.RELEASE</version>
</dependency>
<!-- https://mvnrepository.com/artifact/org.apache.commons/commons-dbcp2 -->
<dependency>
<groupId>org.apache.commons</groupId>
<artifactId>commons-dbcp2</artifactId>
<version>2.7.0</version>
</dependency>
</dependencies>
<build>
<plugins>
<plugin>
<artifactId>maven-eclipse-plugin</artifactId>
<version>2.9</version>
<configuration>
<additionalProjectnatures>
<projectnature>org.springframework.ide.eclipse.core.springnature</projectnature>
</additionalProjectnatures>
<additionalBuildcommands>
<buildcommand>org.springframework.ide.eclipse.core.springbuilder</buildcommand>
</additionalBuildcommands>
<downloadSources>true</downloadSources>
<downloadJavadocs>true</downloadJavadocs>
</configuration>
</plugin>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-compiler-plugin</artifactId>
<version>2.5.1</version>
<configuration>
<source>1.8</source>
<target>1.8</target>
<compilerArgument>-Xlint:all</compilerArgument>
<showWarnings>true</showWarnings>
<showDeprecation>true</showDeprecation>
</configuration>
</plugin>
<plugin>
<groupId>org.codehaus.mojo</groupId>
<artifactId>exec-maven-plugin</artifactId>
<version>1.2.1</version>
<configuration>
<mainClass>org.test.int1.Main</mainClass>
</configuration>
</plugin>
</plugins>
</build>
</project>
web.xml (한글처리)
<?xml version="1.0" encoding="UTF-8"?>
<web-app version="3.1" xmlns="http://java.sun.com/xml/ns/javaee"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://java.sun.com/xml/ns/javaee https://java.sun.com/xml/ns/javaee/web-app_3_1.xsd"
id = "WebApp_ID">
<!-- The definition of the Root Spring Container shared by all Servlets and Filters -->
<context-param>
<param-name>contextConfigLocation</param-name>
<param-value>/WEB-INF/spring/root-context.xml</param-value>
</context-param>
<!-- Creates the Spring Container shared by all Servlets and Filters -->
<listener>
<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
</listener>
<!-- Processes application requests -->
<servlet>
<servlet-name>appServlet</servlet-name>
<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
<init-param>
<param-name>contextConfigLocation</param-name>
<param-value>/WEB-INF/spring/appServlet/servlet-context.xml</param-value>
</init-param>
<load-on-startup>1</load-on-startup>
<multipart-config>
<location>C:\\upload\\temp</location>
<max-file-size>20971520</max-file-size> <!-- 한파일: 1mb * 20 -->
<max-request-size>41943040</max-request-size> <!-- 한번에 여러개올리는데 전체가 40mb -->
<file-size-threshold>20971520</file-size-threshold> <!-- 넘으면 temp에 넣고 업로드에 들어가지 않는다 : 20mb -->
</multipart-config>
</servlet>
<servlet-mapping>
<servlet-name>appServlet</servlet-name>
<url-pattern>/</url-pattern>
</servlet-mapping>
<!-- spring character encoding filter -->
<filter>
<filter-name>encoding</filter-name>
<filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
<init-param>
<param-name>encoding</param-name>
<param-value>UTF-8</param-value>
</init-param>
</filter>
<filter-mapping>
<filter-name>encoding</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping>
</web-app>
servlet-context.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans:beans xmlns="http://www.springframework.org/schema/mvc"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:beans="http://www.springframework.org/schema/beans"
xmlns:context="http://www.springframework.org/schema/context"
xsi:schemaLocation="http://www.springframework.org/schema/mvc https://www.springframework.org/schema/mvc/spring-mvc.xsd
http://www.springframework.org/schema/beans https://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context https://www.springframework.org/schema/context/spring-context.xsd">
<!-- DispatcherServlet Context: defines this servlet's request-processing infrastructure -->
<!-- Enables the Spring MVC @Controller programming model -->
<annotation-driven />
<!-- Handles HTTP GET requests for /resources/** by efficiently serving up static resources in the ${webappRoot}/resources directory -->
<resources mapping="/resources/**" location="/resources/" />
<!-- Resolves views selected for rendering by @Controllers to .jsp resources in the /WEB-INF/views directory -->
<beans:bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
<beans:property name="prefix" value="/WEB-INF/views/" />
<beans:property name="suffix" value=".jsp" />
</beans:bean>
<context:component-scan base-package="com.lje.fileupload_ex" />
<beans:bean id="multipartResolver" class="org.springframework.web.multipart.support.StandardServletMultipartResolver"></beans:bean>
</beans:beans>
FileUploadController.java
package com.lje.fileupload_ex.controller;
import java.io.File;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.ModelAttribute;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.multipart.MultipartFile;
import com.lje.fileupload_ex.domain.BoardVO;
import lombok.extern.java.Log;
@Controller
@Log
public class FileUploadController {
String uploadFolder = "c:\\upload";
@GetMapping("/upload")
public void uploadForm() {
log.info("upload form");
}
@PostMapping("/upload")
public String upload(MultipartFile[] uploadFile, Model model) { //multiparfile : 여러개파일한번에
for(MultipartFile multipartFile : uploadFile ) {
log.info("=============================");
log.info("upload file name:"+multipartFile.getOriginalFilename());
log.info("upload file name:"+multipartFile.getSize());
File saveFile = new File(uploadFolder, multipartFile.getOriginalFilename()); //uploadFolder 주소 밑에 경로 생성
try {
multipartFile.transferTo(saveFile); //파일을 이동해서 복사 (업로드됨)
} catch (Exception e) {
e.printStackTrace();
}
}
return "redirect:list";
}
@GetMapping("/list")
public String list(Model model) {
return "list";
}
@GetMapping("/upload2")
public void uploadForm2() {
log.info("upload form");
}
@PostMapping("/upload2")
public String upload2(MultipartFile[] uploadFile,
@ModelAttribute("board") BoardVO board) { //multiparfile : 여러개파일한번에
log.info("board:"+board);
for(MultipartFile multipartFile : uploadFile ) {
log.info("=============================");
log.info("upload file name:"+multipartFile.getOriginalFilename());
log.info("upload file name:"+multipartFile.getSize());
File saveFile = new File(uploadFolder, multipartFile.getOriginalFilename()); //uploadFolder 주소 밑에 경로 생성
try {
multipartFile.transferTo(saveFile); //파일을 이동해서 복사 (업로드됨)
} catch (Exception e) {
e.printStackTrace();
}
}
return "redirect:list";
}
}
list.jsp
<%@ taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c" %>
<%@ page session="false" %>
<html>
<head>
<title>list page</title>
</head>
<body>
<h1>
list page
</h1>
<P> This page is list page </P>
</body>
</html>
upload.jsp
<%@ page language="java" contentType="text/html; charset=UTF-8"
pageEncoding="UTF-8"%>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
</head>
<body>
<form action="upload" method="post" enctype="multipart/form-data">
<input type="file" name="uploadFile" multiple><br><br>
<button>Submit</button>
</form>
</body>
</html>

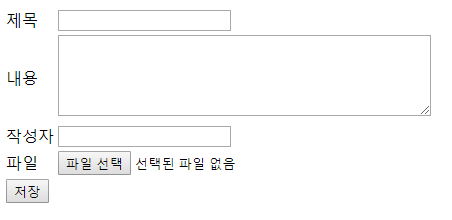

upload2.jsp
<%@ page language="java" contentType="text/html; charset=UTF-8"
pageEncoding="UTF-8"%>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>파일 업로드 하기</title>
</head>
<body>
<form action="upload2" method="post" enctype="multipart/form-data">
<table>
<tr><td>제목</td><td><input type="text" name="title"></td></tr>
<tr><td>내용</td><td><textarea rows="5" cols="50" name="content"></textarea></td></tr>
<tr><td>작성자</td><td><input type="text" name="writer"></td></tr>
<tr><td>파일</td><td><input type="file" name="uploadFile"></td></tr>
<tr><td colspan="2"><input type="submit" value="저장"></td></tr>
</table>
</form>
</body>
</html>
BoardVO.java
package com.lje.fileupload_ex.domain;
import java.util.List;
import lombok.Data;
@Data
public class BoardVO {
private int bno;
private String title;
private String content;
private String writer;
private List<SaveFile> fileList;
// 게시글과 해당하는 파일
}
테이블 만들기
create table file_board(
bno number primary key,
title varchar2(100) not null,
content VARCHAR2(1000) not null,
writer VARCHAR2(50) not null);
create SEQUENCE seq_file_board;
CREATE TABLE save_file(
fno number PRIMARY KEY,
file_name VARCHAR2(200) not null,
bno number REFERENCES file_board(bno));
CREATE SEQUENCE seq_save_file;

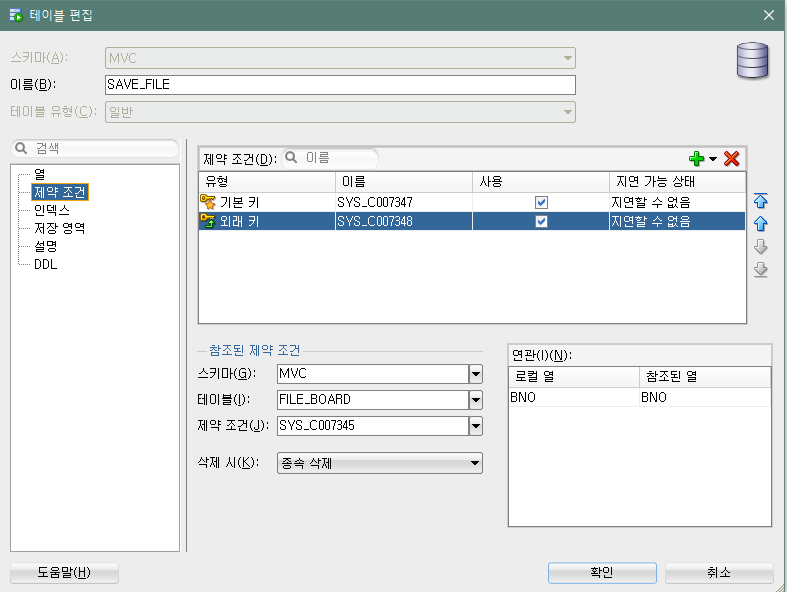

Save_file 제약조건 > 왜래키 > 삭제 시 설정 조정한다.
널 설정, 종속삭제 두 가지가 있는데 종속삭제는 bno를 지웠을 때 같이 지워진다.
SaveFile.java
package com.lje.fileupload_ex.domain;
import lombok.Data;
@Data
public class SaveFile {
private int fno;
private int bno;
private String filename;
}

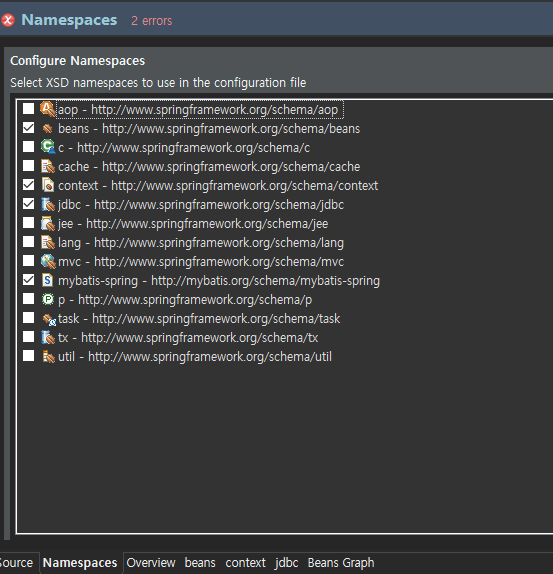

root-context.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:mybatis-spring="http://mybatis.org/schema/mybatis-spring"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:jdbc="http://www.springframework.org/schema/jdbc"
xsi:schemaLocation="http://www.springframework.org/schema/jdbc http://www.springframework.org/schema/jdbc/spring-jdbc-4.3.xsd
http://mybatis.org/schema/mybatis-spring http://mybatis.org/schema/mybatis-spring-1.2.xsd
http://www.springframework.org/schema/beans https://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.3.xsd">
<!-- Root Context: defines shared resources visible to all other web components -->
<bean id="dataSource" class="org.springframework.jdbc.datasource.DriverManagerDataSource">
<property name="driverClassName" value="net.sf.log4jdbc.DriverSpy" />
<property name="url" value="jdbc:log4jdvc:oracle:thin:@192.168.0.78:1521:XE" />
<property name="username" value="mvc" />
<property name="password" value="1234" />
</bean>
<bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean" >
<property name="dataSource" ref="dataSource" />
</bean>
<mybatis-spring:scan base-package="com.lje.fileupload_ex.mapper" />
<context:component-scan base-package="com.lje.fileupload_ex" />
</beans>
mapper
BoardMapper.xml
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper
PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.lje.fileupload_ex.mapper.BoardMapper">
<insert id = "register">
insert into file_board (bno, title, content, writer)
values(seq_file_board.nextval, ${title}, #{content}, #{writer})
</insert>
<select id="get" resultType="com.lje.fileupload_ex.domain.BoardVO">
select * from file_board where bno=#{bno}
</select>
<select id="getList" resultType="com.lje.fileupload_ex.domain.BoardVO">
select * from file_board;
</select>
<update id = "update">
update file_board set title=#{title}, content=#{content}
where bno = #{bno}
</update>
<delete id = "delete">
delete from file_board where bno = #{bno}
</delete>
</mapper>
FileMapper.xml
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper
PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.lje.fileupload_ex.mapper.BoardMapper">
<select id="get" resultType="com.lje.fileupload_ex.domain.SaveFile">
select * from save_file where fno=#{fno}
</select>
<select id="getList" resultType="com.lje.fileupload_ex.domain.SaveFile">
select * from save_file where bno=#{bno}
</select>
<insert id="register">
insert into save_file(fno, filename, bno)
values(seq_save_file.nextval, #{filename}, #{bno})
</insert>
<delete id="delete">
delete from save_file where fno = #{fno}
</delete>
<delete id="deleteList">
delete from save_file where bno = #{bno}
</delete>
</mapper>
FileMapper.java (interface)
package com.lje.fileupload_ex.mapper;
import java.util.List;
import com.lje.fileupload_ex.domain.SaveFile;
public interface FileMapper {
public void register(SaveFile saveFile);
public void delete(int fno);
public SaveFile get(int fno);
public List<SaveFile> getList(int bno);
public void deleteList(int fno);
}
BoardMapper.java (interface)
package com.lje.fileupload_ex.mapper;
import java.util.List;
import com.lje.fileupload_ex.domain.BoardVO;
public interface BoardMapper {
public void register(BoardVO vo);
public void update(BoardVO vo);
public void delete(int bno);
public BoardVO get(int bno);
public List<BoardVO> getList();
}
Service
BoardService.java (interface)
package com.lje.fileupload_ex.service;
import java.util.List;
import com.lje.fileupload_ex.domain.BoardVO;
import com.lje.fileupload_ex.domain.SaveFile;
public interface BoardService {
public void register(BoardVO vo, List<SaveFile> fileList);
public void modify(BoardVO vo);
public void remove(int bno);
public BoardVO read(int bno);
public List<BoardVO> getList();
public void removeFile(int fno);
public void registerFile(List<SaveFile> fileList);
}
BoardServiceImpl.java
package com.lje.fileupload_ex.service;
import java.util.List;
import org.springframework.stereotype.Service;
import org.springframework.transaction.annotation.Transactional;
import com.lje.fileupload_ex.domain.BoardVO;
import com.lje.fileupload_ex.domain.SaveFile;
import com.lje.fileupload_ex.mapper.BoardMapper;
import com.lje.fileupload_ex.mapper.FileMapper;
import lombok.AllArgsConstructor;
import lombok.extern.java.Log;
@Service
@Log
@AllArgsConstructor
public class BoardServiceImpl implements BoardService {
private BoardMapper bMapper;
private FileMapper fMapper;
@Transactional //트랜잭션 두개 이상의 함수
@Override
//파일이 입력되거나 실패되면 전체 롤백됨.
public void register(BoardVO vo, List<SaveFile> fileList) {
log.info("Service.register..."+vo);
bMapper.register(vo);
registerFile(fileList);
// for(int i=0; i<fileList.size(); i++) {
// fMapper.register(fileList.get(i));
// log.info("Save file:"+fileList.get(i));
// }
}
@Override
public void modify(BoardVO vo) {
bMapper.update(vo);
}
@Transactional
@Override
public void remove(int bno) { //파일은 게시글과 함께 지워진다.
fMapper.delete(bno);
bMapper.delete(bno);
}
@Override
public BoardVO read(int bno) { //데이터 가져오는거라 트랜젝션 ㄴㄴ
List<SaveFile> fileList=fMapper.getList(bno);
BoardVO vo=bMapper.get(bno);
vo.setFileList(fileList);
return vo;
}
@Override
public List<BoardVO> getList() {
return bMapper.getList();
}
@Override
public void removeFile(int fno) {
fMapper.delete(fno);
}
@Override
public void registerFile(List<SaveFile> fileList) {
for(int i=0; i<fileList.size(); i++) {
fMapper.register(fileList.get(i));
log.info("Save file:"+fileList.get(i));
}
}
}
728x90
728x90
'Frameworks > Spring' 카테고리의 다른 글
AOP와 트랜잭션 처리 - 1. Spring AOP와 트랜잭션 관리 (0) | 2019.09.10 |
---|---|
스프링 mybatis와 junit 실습 (0) | 2019.08.29 |
JUnit 제이유닛에 대해 (0) | 2019.08.29 |
lombok : setter, getter를 만들어주는 repository (0) | 2019.08.29 |
Spring mybatis를 이용하여 게시판 만들기 (0) | 2019.08.28 |
